Kioxia has recently launched an impressive solid-state drive (SSD) that boasts an unprecedented storage capacity of 245.76TB, setting a new benchmark in the storage industry. This groundbreaking innovation is designed primarily for applications requiring maximum storage density, such as artificial intelligence (AI) training and hyperscale workloads. With the ability to hold 8TB within a single NAND package, Kioxia has managed to create the highest-capacity SSD currently available on the market. For context, this immense capacity could theoretically store around 12,500 4K movies, given an average compressed movie size of about 20GB.
Technical Specifications and Design
The Kioxia LC9 SSD operates on a proprietary NVMe 2.0-compliant controller and features a PCIe 5.0 x4 interface, complete with dual-port capabilities. It utilizes Kioxia’s advanced BiCS8 2Tb 3D QLC NAND memory technology to achieve its record-breaking capacity. To reach the impressive 245.76TB in an E3.L form factor, Kioxia packaged 32 memory devices into a single chip, each capable of holding 8TB of storage. This meticulous packaging process highlights Kioxia’s innovative methods in wafer processing and assembly, which are crucial for achieving such high storage density.
In terms of performance, the SSD offers sequential read speeds of up to 12 GB/s and write speeds of 3 GB/s. While these figures may not represent the absolute highest performance levels for PCIe 5.0 SSDs, they reflect a thoughtful compromise between storage capacity and speed. The challenges associated with maintaining signal integrity in a high-capacity 32-Hi 3D NAND package contribute to the decision to prioritize storage over maximum performance.
Random Operations and Endurance
When it comes to random operations, the Kioxia LC9 achieves up to 1.3 million IOPS for read operations and 50,000 IOPS for writes. While these specifications may not be the most impressive within its category, they align with the drive’s focus on capacity rather than raw speed. Endurance ratings come in at 0.3 drive writes per day (DWPD), which balances stability and longevity tailored for the specific usage patterns typically seen in data centers.
Kioxia has implemented numerous features to enhance reliability and safeguard data integrity. These features include die-level recovery, parity-based error management, and protective measures against sudden power loss. Additionally, the LC9 supports Flexible Data Placement, which helps reduce internal write amplification and extend the drive’s usable lifespan, particularly in database-centric environments.
Security Features
Security is a paramount concern for modern data storage solutions, and Kioxia has incorporated multiple security options into the LC9 SSD. These security features include encryption and firmware signing compliant with the CNSA 2.0 standards, allowing for robust data protection. Users can take advantage of various encryption modes, including the AES-256 standard and algorithms designed for post-quantum cryptography, addressing the evolving security landscape.
Market Position and Availability

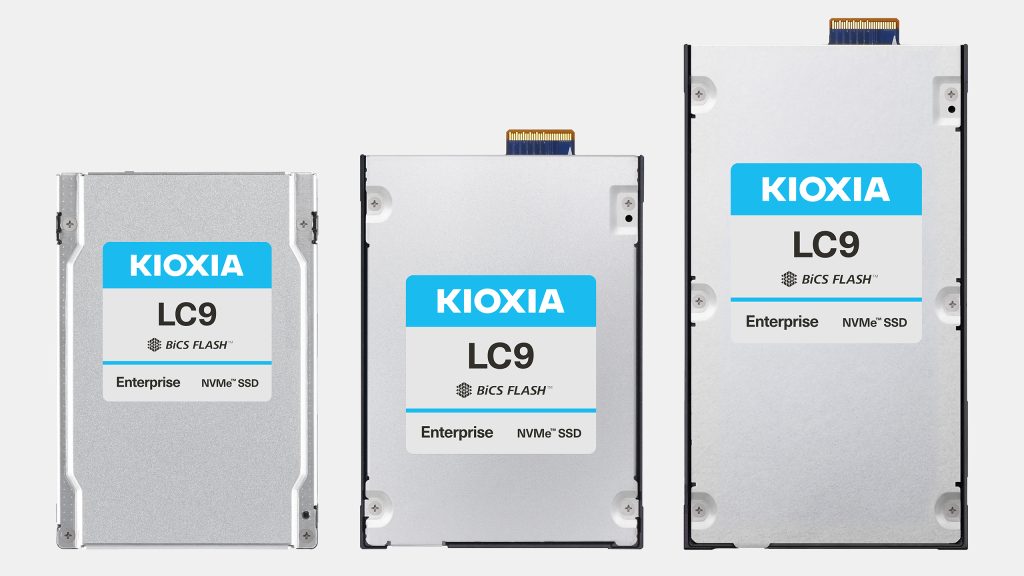

Kioxia plans to offer these high-capacity drives across various form factors, including a 2.5-inch U.2 version (up to 122.88TB), an E3.S format (up to 122.88TB), and the E.3L version that can hit the maximum 245.76TB. However, the company has not released specific pricing details, indicating that these drives will primarily target large hyperscale data center operators. Pricing will likely depend on order volume and other factors, making it essential for potential buyers to inquire directly for quotes.
The LC9 series is currently being sampled to select partners and will be presented at the Future of Memory and Storage conference scheduled for August 2025, setting the stage for broader market introduction.
Industry Reaction
The introduction of Kioxia’s LC9 SSD has sparked considerable interest among industry professionals and analysts, particularly due to its potential applications in cutting-edge technology sectors such as AI and big data. According to a Statista report, the demand for high-capacity storage solutions is expected to surge as businesses continue to transition towards data-driven decision-making processes. This aligns perfectly with Kioxia’s strategy, making the development of the LC9 SSD timely and relevant.
Furthermore, as highlighted by a report from Forbes, the rise in remote work and digital content consumption has led to an escalation in data storage needs, paving the way for innovative solutions like Kioxia’s that cater to the needs of modern enterprises.
With the launch of the LC9 SSD, Kioxia is not only pushing the boundaries of storage capacity but is also positioning itself as a leader in the data storage industry, helping businesses meet the growing demands of the digital age.
